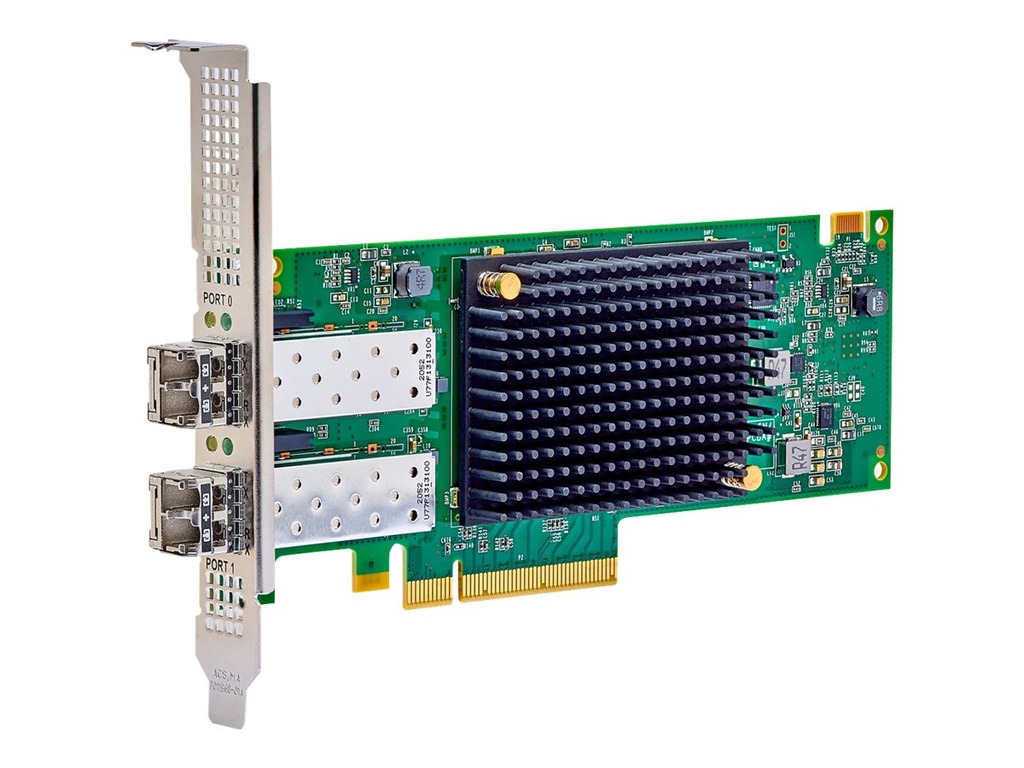

Lenovo ThinkSystem Emulex LPe36002 - Hostbus-Adapter - PCIe 4.0 x8 Low-Profile - 64Gb Fibre Channel Gen 7 (Short Wave)

Hostbus-Adapter

Plug-in-Karte - Low-Profile

PCI Express 4.0 x8

PCIe 4.0

64Gb Fibre Channel Gen 7 (Short Wave) x 2

Kabelgebunden

Fibre Channel

64Gb Fibre Channel Gen 7 (Short Wave)

FC-PI-7, FC-FS-5, FC-LS-5, FC-LS-4, FC-GS-8, FCP-4, FC-SP-2, SPC-4, SBC-3, SSC-4, FC-NVMe-2, FC-PI-1, FC-PI-2, FC-PI-3, FC-PI-5, FC-PI-6, FC-FS-1, FC-FS-2, FC-FS-3, FC-FS-4, FC-LS-1, FC-LS-2, FC-LS-3, FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5, FC-GS-6, FC-GS-7, FC-GS-1, FC-PH-1, FC-PH-2, FC-PH-3, FC-DA-1, FC-DA-2, FCP-2, FCP-3, FC-HBA, FC-Tape, FC-MI, SPC-3, SBC-2, SSC-2, SSC-3, FC-NVMe with AM1

57.8 Gbps

Maximaler IOPS: 10000000

Vollduplex-fähig, Transparente NPIV-Modusunterstützung (N_Port ID Virtualization), SR-IOV

1 x Emulex XE601

2 x 64Gb Fibre Channel Gen 7 (Short Wave) - SFP+

Low profile Slotblech, Halterung, volle Höhe

AS/NZS CISPR22:2009+A1 Class A, RoHS, CSA 60950-1-07, EN 55022:2010 Class A, EN 55024:2010, EN 55032:2012, EU Low Voltage Directive, UKCA, FCC Part 15 A, ICES-003 Klasse A, VCCI Class A, KCC Class A, Directive 2011/65/EU, EN60950-1+A11+A1+A12+A2, BSMI Class A, BSMI, TUV, CSA 22.2, China RoHS, RCM, UL 60950-1 Second Edition

Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, SuSE Linux Enterprise Server 12 SP4, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, VMware vSphere Hypervisor 6.5 (ESXi), VMware vSphere Hypervisor 6.5 (ESXi) Update 1, VMware vSphere Hypervisor 6.5 (ESXi) Update 2, VMware vSphere Hypervisor 6.5 (ESXi) Update 3, VMware vSphere Hypervisor 6.7 (ESXi), VMware vSphere Hypervisor 6.7 (ESXi) Update 1, VMware vSphere Hypervisor 6.7 (ESXi) Update 2, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2

16.8 cm

6.9 cm

Begrenzte Garantie - 1 Jahr

0 °C

55 °C

5 - 95 % (nicht kondensierend)

Lenovo ThinkStation P920 Rack 7X06
Lenovo ThinkSystem SR650 7X05, 7X06
Lenovo ThinkSystem SR650 V2 7D15
Lenovo ThinkSystem SR665 7D2V, 7D2W
Lenovo ThinkSystem SR850 V2 7D31, 7D32
Lenovo ThinkSystem SR850P 7D2F
Lenovo ThinkSystem SR860 V2 7Z59, 7Z60
