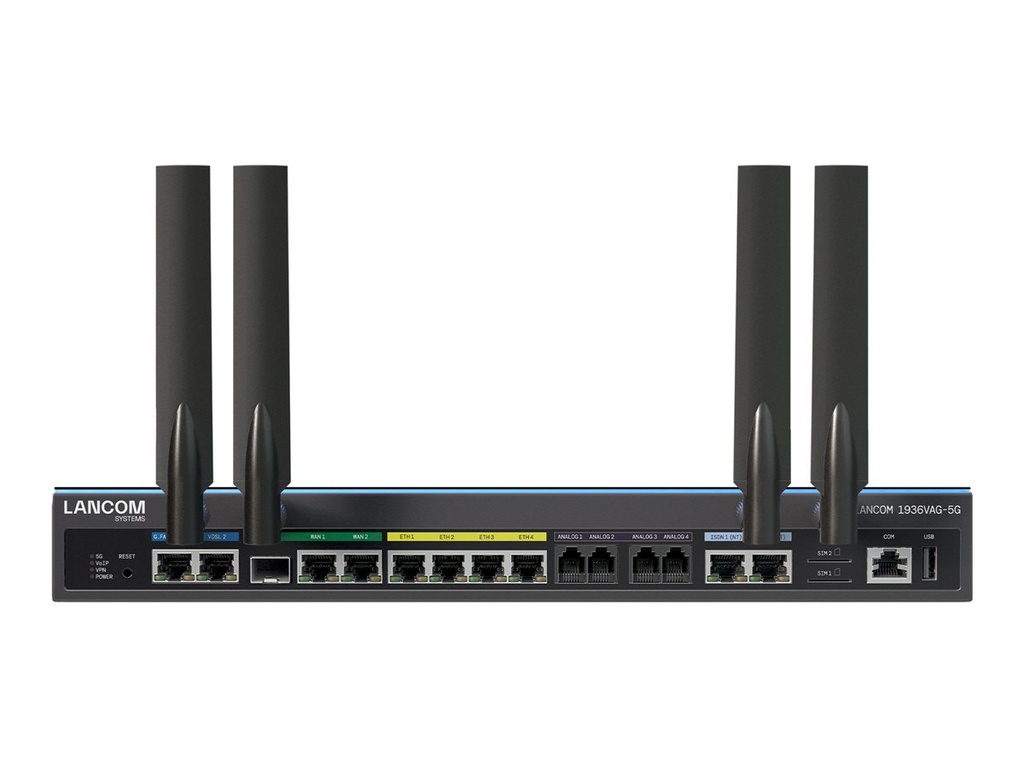

Lancom 1936VAG-5G - Gateway - 1GbE, 5G - LTE

Gateway

1U

34.5 cm

25.3 cm

4.4 cm

2.5 kg

Europa

Rack-montierbar

Kabelgebunden, kabellos

Gigabit Ethernet, Fast Ethernet, Ethernet, 5G, LTE

L2TPv3, ARP, DHCP, IPv6, BOOTP, IPv4, HTTP, HTTPs, DNS, PPPoE, RTP, IGMPv3, PPTP, L2TPv2, IPoE, NTP, IPSec

MLD, IGMP, GRE, RIP-2, BGP-4, OSPFv2, LISP, VRRPv3, RIP-1, MLDv2, VRRP

OAM, Bonjour, ICMP, HTTP, HTTPS, NTP, SNMP 1, SNMP 2c, SNMP 3, TFTP, Syslog, MLD

Ja

VLAN IDs: 4096
IPSec-VPN-Verbindungen: 25
VPN-Tunnel: 25
VoIP Lokale Abonnenten: 10
Gleichzeitige VoIP-Verbindungen: 100

VLAN-Unterstützung, IGMP Snooping, MLD-Snooping, Ethernet over GRE-Tunnel (EoGRE), ARP Lookup, LLDP-Support, DHCP-Snooping, unterstützt Rapid Spanning Tree Protocol (RSTP), Spanning Tree Protocol (STP) Support, Proxy ARP, LACP-Support, firewall, Quality of Service (QoS), Intrusion Prevention System (IPS), Access Control List (ACL) Support, Denial of Service (DoS) protection, IP-Spoofing, Passwortschutz, Pin Detect, Programmierbare Reset-Taste, Stealth Mode, URL-Blocker, IPv4 und IPv6 Dual-Stack, SD-WAN-Support, Zero-Touch Deployment, Advanced Routing and Forwarding (ARF), DNS-Klient, DNS-Server, DNS-Relais, DNS proxy, dynamischer DNS-Client, DHCP-Client, DHCP-Relais, DHCP-Server, NTP-Klient, SNTP-Server, DHCPv6 Client, DHCPv6 Relais, DHCPv6 Server, SNTP-Unterstützung, Network Prefix Translation (NPT) 6, Stateless Address Autoconfiguration (SLAAC), Protocol Independent Multicast (PIM), IGMP-Proxy, MLD-Proxy, Metallgehäuse, E-Mail-Meldung, Point-to-Point Protocol (PPP), FirmSafe, Lastenausgleich, VPN-Redundanz, Leitungsüberwachung, IPSec über HTTPS, VPN-Support, Echtzeituhr, integrierter Hardware-Crypto-Beschleuniger, random number generator, Simple Certificate Enrollment Protocol (SCEP), Zertifikatswiderrufslisten (CRL), OCSP-Unterstützung, IPSec NAT-Traversal (NAT-T), Sitzungsgrenzkontrolle (SBC), 4x4 MIMO-Technologie, NetFlow, 1 Ventilator

3DES-168, IKE, IKEv2, 1024-bit RSA, 128-bit AES-CBC, 128-bit AES-GCM, 192-bit AES-CBC, 192-bit AES-GCM, 2048-bit RSA, 256-bit AES-CBC, AES-GCM, 256 Bit, 3072-Bit-RSA, 4.096-Bit-RSA, Chacha20-Poly 1305, ECDSA 256-Bit, ECDSA 384-Bit, ECDSA 512-bit, FIPS 140, MD5, SHA-1, SHA-256, SHA-384, SHA-512

PAP, CHAP, MS-CHAP v.2, MS-CHAP, RADIUS, RADSEC, TACACS+, X.509-Zertifikate, XAUTH-Authentifizierung

IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1ah, IEEE 802.3az

SIP ALG, SIPS, SRTP, RTP

AAC-LC, ADPCM, G.711a-law, G.711u-law, G.722, G.723, G.726, G.729, iLBC, Opus, T.38, G.711

4 Telefone (FXS)

Rufumleitung, Rufweiterleitung, Ruf halten, Makeln, Anrufweiterleitung, Calling Line Identification Presentation (CLIP), Calling Line Identification Restriction (CLIR), Teilnehmergruppe mit gemeinsamer Adresse, sofortige ausgehende Leitung, Overlap-Dialing, suppression of second call, DTMF Inband, T.38 FAX

Extern abnehmbar

4

2 dBi

G.fast, VDSL, ADSL2+, VDSL2

Ja

5G

LTE, UMTS, HSPA, 5G

UMTS B1/B2/B4/B5/B8/B19/ LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66/B71 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79

2 (gesamt)/ 2 (frei) x Mini SIM-Karte

2 x 1000Base-T - RJ-45 (WAN / DMZ)
4 x 1000Base-T - RJ-45 (LAN / DMZ / WAN)
1 x Ethernet 1000 - SFP (mini-GBIC) (WAN / DMZ)
1 x USB 2.0
2 x ISDN BRI
4 x FXS
1 x serial - RJ-45

Netzkabel

1 x Netzwerkkabel - 3 m
2 x DSL-Kabel - 4.25 m
4 x Adapter RJ-11 auf TAE

Internes Netzteil

Wechselstrom 110-230 V V (50 - 60 Hz)

LCOS 10.90

LANconfig, WEBconfig, LANmonitor, WLANmonitor

Begrenzte Garantie - 3 Jahre

0 °C

40 °C

0 - 95 % (nicht kondensierend)
